Double-Curved Aluminum Facade Panels for Sculptural Entrances
- Compound-curved panels for fluid column-to-canopy transitions
- 3D segmentation, forming and reinforced cassette engineering
- Mock-up and numbered trial-assembly support for complex envelopes
-
Estimated Delivery:Jul 28 - Aug 01
Product Overview

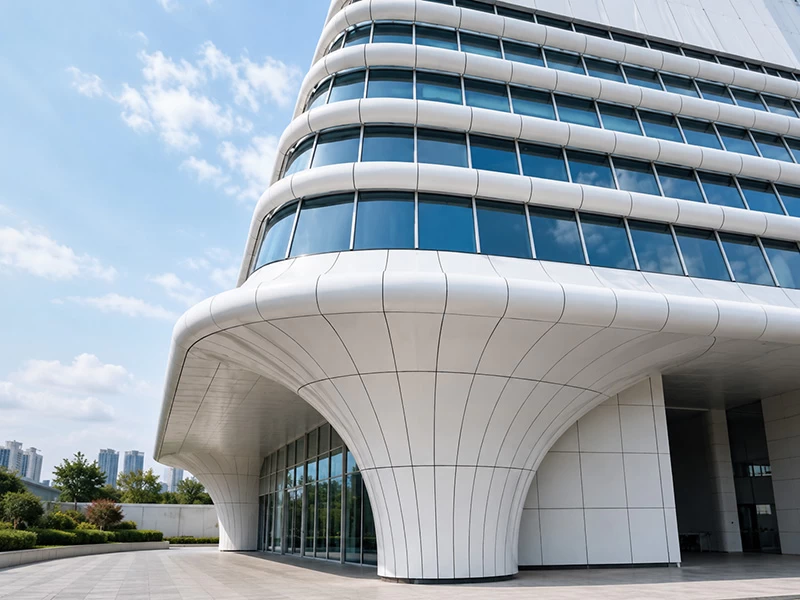

Double-curved aluminum facade panels are designed for sculptural entrances and building envelopes where surfaces change in more than one direction. The completed project image shows white cladding flowing from vertical columns into a broad rounded canopy, with carefully controlled panel joints across the compound geometry. Delivery requires 3D model segmentation, forming strategy, reinforcement design, accurate subframe interfaces and trial assembly of critical zones. Panels may be stretch-formed, press-formed or rationalized into developable sections depending on the geometry. Exact alloy, thickness, radii, tolerances, panel size and structural values are available only after engineering review.
Key Features
- Compound-curved panels create seamless transitions between columns and canopies
- 3D segmentation controls panel boundaries across complex geometry
- Multiple forming routes can be assessed for cost and visual requirements
- Reinforced cassettes support stable panel shape and fixing interfaces
- Numbered digital production data supports accurate site sequencing
- Mock-ups can be used to confirm joints, finish and curvature
Product Specifications
| Product Type | double-curved aluminum facade panels |
|---|---|
| Base Material | Formable architectural aluminum selected for the approved production method |
| Geometry | Double-curved cassettes or rationalized curved panel families from a 3D model |
| Surface Finish | White finish shown; metallic and custom color coating systems available |
| Dimensions / Thickness | Available upon request after drawing, span and load review |
| Mounting Concept | Engineered brackets and reinforced cassettes connected to the coordinated subframe |
| Required Project Data | Drawings, size schedule, quantity, finish reference, application environment and delivery destination |
Applications
- Sculptural building entrances
- Museum and cultural facades
- Commercial podiums and flagship stores
- Curved columns, canopies and soffits
Customization Options
- MaterialFormable architectural aluminum selected for the approved production method
- Size & GeometryDouble-curved cassettes or rationalized curved panel families from a 3D model
- Color & FinishWhite finish shown; metallic and custom color coating systems available
- Logo & IdentificationOEM labels, protective-film printing, carton marks and installation codes can be arranged on request.
- Fabrication3D modeling, forming simulation, CNC trimming, reinforcement and trial assembly
- PackagingEach compound panel is fixed to a shaped transport frame, surface-protected and crated with orientation labels.
Packaging & Shipping
Each compound panel is fixed to a shaped transport frame, surface-protected and crated with orientation labels.
Carton marks, pallet configuration, container loading and shipping documents are confirmed with the order. Packing quantity and gross weight are provided after final panel or profile dimensions are approved.
Manufacturing & Quality Control
3D geometry, trim lines, bracket positions, joint gaps, surface quality and trial-fit continuity are verified.
Production follows approved drawings and samples through incoming-material review, fabrication, finish inspection, dimensional verification, protective packing and shipment release.
FAQ
What information is needed for a quotation?
Please send drawings or a size schedule, quantity, application environment, finish reference, installation location and delivery destination. We will then review the technical scope before quoting.
Can the dimensions and geometry be customized?
Yes. Double-curved cassettes or rationalized curved panel families from a 3D model. Final production limits and tolerances are confirmed after drawing review.
Which aluminum alloy and thickness should I specify?
Formable architectural aluminum selected for the approved production method. Exact alloy, temper and thickness are selected according to geometry, span, forming process and engineering requirements; detailed specifications are available upon request.
What finishes are available?
White finish shown; metallic and custom color coating systems available. A physical color or finish sample is recommended for project approval.
How is this product installed?
Engineered brackets and reinforced cassettes connected to the coordinated subframe. Final bracket, carrier, fastener and subframe details must be coordinated with the project engineer and installer.
Is it suitable for sculptural building entrances?
The product can be developed for this application, subject to the selected finish, environment, loading, access and local code requirements. Please provide project conditions for confirmation.
Can you support OEM or ODM production?
Yes. Foshan Pamir supports project-based OEM and ODM work, including drawing review, finish sampling, custom fabrication, labeling and export packing.
How are panels or profiles protected for shipment?
Each compound panel is fixed to a shaped transport frame, surface-protected and crated with orientation labels.
What are the MOQ and lead time?
MOQ and lead time depend on the approved size, geometry, finish, tooling, quantity and packing plan. They are provided with the project quotation rather than assumed in advance.
