Curved Solid Aluminum Cladding Panels for Freeform Facades
- Made-to-model curved cassettes for sweeping facade geometry
- Coordinated joints, reinforcement and numbered installation sequence
- Metallic and custom coating options for landmark entrances
-
Estimated Delivery:Jul 28 - Aug 01
Product Overview

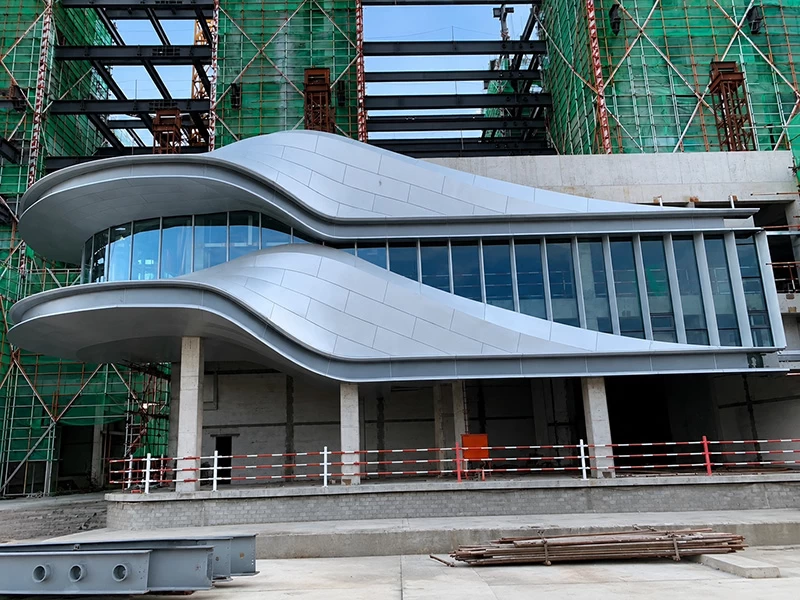

Curved solid aluminum cladding panels allow architects to wrap canopies, fascias and freeform building volumes with a continuous metallic skin. The construction image shows silver panels following two sweeping horizontal forms around a glazed entrance, with segmented joints used to approximate complex curves. Each panel is developed from a coordinated 3D model and shop drawings so that radii, joint lines, returns, reinforcement and support points align on site. Material grade, thickness, finish system, panel size and structural design are project-specific. Exact values and tolerances are available after geometry, wind conditions and subframe interfaces have been reviewed.
Key Features
- Custom-curved panels follow sweeping canopies and facade bands
- Segmented joint planning translates 3D forms into buildable modules
- Solid aluminum supports folding, rolling and reinforcement options
- Lightweight cladding reduces demand on complex edge structures
- Panel numbering helps maintain geometry during installation
- Metallic and solid-color finishes can be sampled for visual approval
Product Specifications
| Product Type | curved solid aluminum cladding panels |
|---|---|
| Base Material | Solid architectural aluminum with alloy and thickness selected for forming |
| Geometry | Single-curved or segmented panels based on coordinated 3D geometry |
| Surface Finish | Silver metallic finish shown; PVDF, powder-coated and anodized options available |
| Dimensions / Thickness | Available upon request after drawing, span and load review |
| Mounting Concept | Reinforced cassette and bracket system fixed to a project-specific subframe |
| Required Project Data | Drawings, size schedule, quantity, finish reference, application environment and delivery destination |
Applications
- Freeform entrances and canopies
- Commercial podium facades
- Cultural and civic buildings
- Curved fascia and soffit systems
Customization Options
- MaterialSolid architectural aluminum with alloy and thickness selected for forming
- Size & GeometrySingle-curved or segmented panels based on coordinated 3D geometry
- Color & FinishSilver metallic finish shown; PVDF, powder-coated and anodized options available
- Logo & IdentificationOEM labels, protective-film printing, carton marks and installation codes can be arranged on request.
- Fabrication3D unfolding, CNC cutting, rolling, folding, reinforcement and trial assembly
- PackagingCurved cassettes are supported on shaped frames or cradles, film-protected and crated by installation sequence.
Packaging & Shipping
Curved cassettes are supported on shaped frames or cradles, film-protected and crated by installation sequence.
Carton marks, pallet configuration, container loading and shipping documents are confirmed with the order. Packing quantity and gross weight are provided after final panel or profile dimensions are approved.
Manufacturing & Quality Control
Radius, panel edge, diagonal dimensions, reinforcement, bracket points, joint continuity and finish are checked.
Production follows approved drawings and samples through incoming-material review, fabrication, finish inspection, dimensional verification, protective packing and shipment release.
FAQ
What information is needed for a quotation?
Please send drawings or a size schedule, quantity, application environment, finish reference, installation location and delivery destination. We will then review the technical scope before quoting.
Can the dimensions and geometry be customized?
Yes. Single-curved or segmented panels based on coordinated 3D geometry. Final production limits and tolerances are confirmed after drawing review.
Which aluminum alloy and thickness should I specify?
Solid architectural aluminum with alloy and thickness selected for forming. Exact alloy, temper and thickness are selected according to geometry, span, forming process and engineering requirements; detailed specifications are available upon request.
What finishes are available?
Silver metallic finish shown; PVDF, powder-coated and anodized options available. A physical color or finish sample is recommended for project approval.
How is this product installed?
Reinforced cassette and bracket system fixed to a project-specific subframe. Final bracket, carrier, fastener and subframe details must be coordinated with the project engineer and installer.
Is it suitable for freeform entrances and canopies?
The product can be developed for this application, subject to the selected finish, environment, loading, access and local code requirements. Please provide project conditions for confirmation.
Can you support OEM or ODM production?
Yes. Foshan Pamir supports project-based OEM and ODM work, including drawing review, finish sampling, custom fabrication, labeling and export packing.
How are panels or profiles protected for shipment?
Curved cassettes are supported on shaped frames or cradles, film-protected and crated by installation sequence.
What are the MOQ and lead time?
MOQ and lead time depend on the approved size, geometry, finish, tooling, quantity and packing plan. They are provided with the project quotation rather than assumed in advance.
